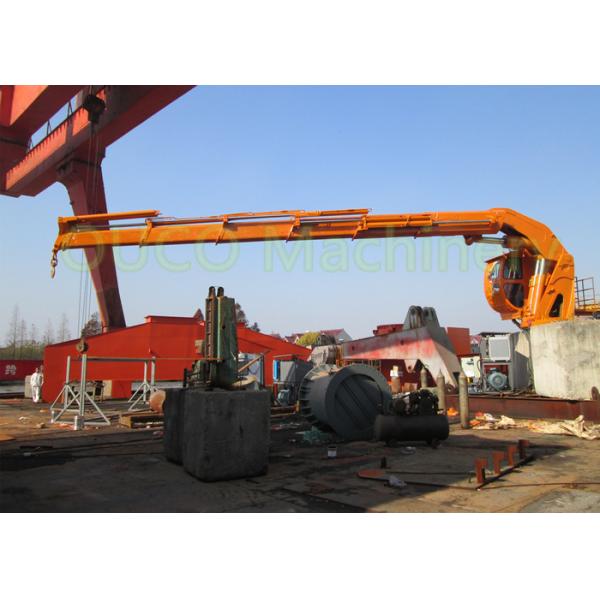

Impact Resistant Folding telescopic Boom Crane , Electrical Hydraulic Marine Crane
Product description:
Folding boom crane are suitable to operate at close distances.
This model combines force and strength, with a flexible outreach, easy to handle.
They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.
The cranes come with different types of control systems, such as: stand up, control from the ground, seat control, or radio remote control. The radio remote systems now can start the crane as well as run the crane. Currently, they come equipped with a computer readout system that immediately gives readouts from the system if the crane is overloaded or not.
General Arrangement:
Technial Specification:
| SWL | 5t@20m |
| Max Working Radius | 20m |
| Min Working Radius | 3m |
| Hoisting Speed | 0~10m/min |
| Hoisting Height | 25m |
| Slewing Speed | ~0.8r/min |
| Luffing Time | 145 |
| Knuckle Boom Time | ~120s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Power | 55KW |
| Protection Class | IP56 |
| Working Type | S1 |
Production process at OUCO workshop:
OUCO friends from all over the world :
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ:
Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
Anything else? We will be pleased to answer all your questions and doubts.
